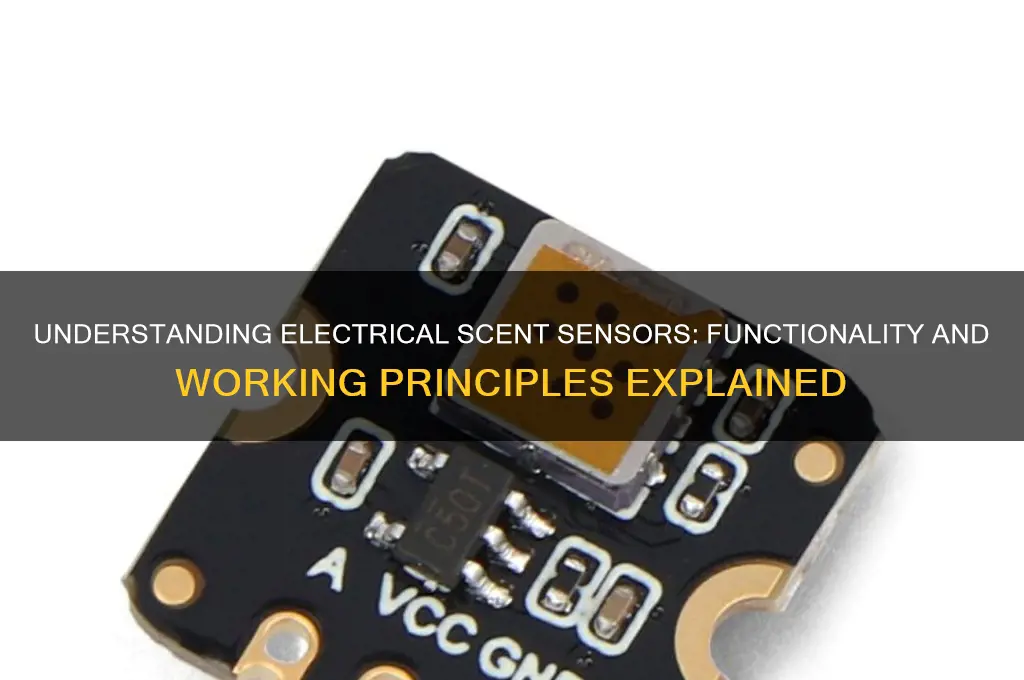

An electrical scent sensor, also known as an electronic nose or e-nose, operates by mimicking the human olfactory system to detect and identify odors. It typically consists of an array of chemical sensors, each with a different sensitivity to volatile organic compounds (VOCs) present in the air. When exposed to a scent, these sensors undergo changes in electrical properties, such as resistance or capacitance, which are then measured and processed by a data acquisition system. The resulting signals are analyzed using pattern recognition algorithms to classify or quantify the odor. Unlike the human nose, which relies on biological receptors, electrical scent sensors use materials like metal oxides, polymers, or carbon nanotubes to interact with odor molecules, making them highly versatile for applications in industries such as food quality control, environmental monitoring, and medical diagnostics.
| Characteristics | Values |
|---|---|
| Working Principle | Detects volatile organic compounds (VOCs) or gas molecules via changes in electrical properties. |
| Sensor Types | Metal-Oxide Semiconductors (MOS), Conductive Polymers, Quartz Crystal Microbalance (QCM), Field-Effect Transistors (FETs). |
| Detection Mechanism | Changes in resistance, capacitance, mass, or frequency due to molecular interactions. |
| Sensitivity | High (ppb to ppm levels for specific compounds). |
| Response Time | Typically < 1 minute (varies by sensor type and application). |
| Selectivity | Limited; often requires arrays or machine learning for compound identification. |
| Power Consumption | Low to moderate (e.g., MOS sensors: < 1W). |
| Operating Temperature | -20°C to 85°C (varies by sensor material and design). |
| Lifespan | 1–5 years (dependent on usage and environmental conditions). |
| Applications | Air quality monitoring, food freshness detection, medical diagnostics, industrial safety. |
| Miniaturization | Possible (e.g., MEMS-based sensors for portable devices). |
| Calibration Requirements | Periodic calibration needed for accuracy. |
| Cost | Low to moderate ($1–$100 per sensor, depending on complexity). |
| Integration | Compatible with IoT, smartphones, and embedded systems. |
| Limitations | Cross-sensitivity, drift over time, and environmental interference (humidity, temperature). |
Explore related products
What You'll Learn
- Sensing Mechanism: Detects volatile organic compounds (VOCs) via changes in electrical properties
- Sensor Types: Includes metal-oxide, polymer, and quartz crystal microbalance sensors
- Signal Processing: Converts electrical signals into scent data using algorithms
- Calibration: Adjusts sensor readings to ensure accurate scent identification
- Applications: Used in air quality, food safety, and medical diagnostics
Sensing Mechanism: Detects volatile organic compounds (VOCs) via changes in electrical properties
Electrical scent sensors leverage the unique interaction between volatile organic compounds (VOCs) and sensitive materials to detect odors. At the core of this mechanism is the principle that VOCs alter the electrical properties of the sensing material when they come into contact with it. This change—whether in resistance, capacitance, or conductivity—is measured and translated into a detectable signal. For instance, metal oxide semiconductors (MOS) like tin oxide (SnO₂) are commonly used due to their ability to change resistance when exposed to VOCs. When a VOC molecule adsorbs onto the sensor surface, it modulates the material’s electron flow, producing a measurable electrical response proportional to the VOC concentration.
Consider the practical application of this technology in indoor air quality monitors. These devices often use arrays of MOS sensors, each coated with different materials to target specific VOCs. For example, a sensor coated with tungsten oxide (WO₃) might be more sensitive to formaldehyde, while another with titanium dioxide (TiO₂) could detect ethanol. When VOCs interact with these coatings, the sensors’ resistance changes, and the device interprets these variations to identify and quantify the compounds. Calibration is critical here; sensors must be tuned to baseline conditions to avoid false positives, especially in environments with fluctuating humidity or temperature.
One of the challenges in this sensing mechanism is selectivity. VOCs are diverse, and a single sensor type may respond to multiple compounds, complicating identification. To address this, manufacturers often employ pattern recognition algorithms or machine learning models that analyze the collective response of multiple sensors. For instance, a sensor array might detect a unique "fingerprint" of electrical changes when exposed to a specific VOC mixture, allowing the system to differentiate between, say, benzene and toluene. This approach mimics the human olfactory system, where combinations of receptors create distinct smell profiles.
For DIY enthusiasts or researchers, building a basic VOC sensor using MOS technology is feasible with readily available components. Start by sourcing SnO₂ gas sensors (e.g., MQ-135) and a microcontroller like Arduino. Connect the sensor to the microcontroller’s analog input pin and write a program to read voltage changes. Calibrate the sensor by exposing it to known VOC concentrations (e.g., using ethanol vapor) and mapping the output values. Remember to account for environmental factors—operate the sensor at a stable temperature (typically 200–300°C for MOS sensors) and control humidity levels to ensure accuracy.
In industrial settings, advanced VOC sensors often integrate heating elements to optimize sensitivity and response time. For example, cyclic heating of MOS sensors between 200°C and 400°C can enhance their ability to detect low-concentration VOCs by promoting desorption and reducing sensor fatigue. However, this requires precise temperature control to prevent material degradation. Such sensors are invaluable in applications like leak detection in chemical plants or monitoring food freshness, where rapid and reliable VOC detection is critical. By understanding the interplay between VOCs and electrical properties, engineers can design sensors tailored to specific needs, balancing sensitivity, selectivity, and durability.
Does Alma Oil Have a Scent? Uncovering Its Aromatic Truth
You may want to see also
Explore related products
Sensor Types: Includes metal-oxide, polymer, and quartz crystal microbalance sensors
Electrical scent sensors leverage diverse technologies to detect and differentiate odors, each with unique mechanisms and applications. Among the most prominent are metal-oxide, polymer, and quartz crystal microbalance (QCM) sensors, which operate on distinct principles but share the goal of translating volatile organic compounds (VOCs) into measurable electrical signals. Understanding their differences is crucial for selecting the right sensor for specific scent-detection needs.
Metal-oxide sensors are widely recognized for their simplicity and cost-effectiveness. These sensors consist of a metal-oxide film, typically tin oxide (SnO₂), which changes electrical resistance when exposed to VOCs. At elevated temperatures (200–400°C), the film’s surface reacts with gas molecules, altering its conductivity. For instance, in the presence of ethanol, SnO₂ reduces its resistance due to the release of electrons during the oxidation process. However, metal-oxide sensors often lack specificity, requiring additional algorithms or sensor arrays to distinguish between similar odors. They are commonly used in household gas leak detectors and industrial VOC monitors due to their robustness and low cost.
Polymer sensors, in contrast, rely on organic materials that swell or shrink upon exposure to specific VOCs, modulating electrical properties like impedance or capacitance. These sensors operate at room temperature, making them energy-efficient and safer for portable applications. For example, a poly(ethylene oxide) (PEO) film increases in conductivity when exposed to polar molecules like acetone, as the polymer chains absorb the VOCs and facilitate ion mobility. Polymer sensors excel in detecting low-concentration VOCs but may degrade over time due to material fatigue. They are ideal for wearable devices, such as fitness trackers that monitor metabolic markers through sweat analysis.
Quartz crystal microbalance (QCM) sensors offer unparalleled sensitivity by measuring changes in resonant frequency caused by mass accumulation on a quartz crystal surface. When VOCs adsorb onto a functionalized coating (e.g., a polymer or self-assembled monolayer), the added mass reduces the crystal’s oscillation frequency, proportional to the VOC concentration. QCM sensors can detect picogram-level changes, making them suitable for high-precision applications like explosives detection or environmental monitoring. However, their sensitivity to temperature and humidity requires careful calibration. For instance, a QCM sensor coated with a polypyrrole layer can selectively detect ammonia by leveraging the polymer’s affinity for the gas.
In practice, the choice of sensor depends on the application’s requirements. Metal-oxide sensors are ideal for general VOC detection in harsh environments, while polymer sensors shine in low-power, portable devices. QCM sensors are reserved for scenarios demanding extreme sensitivity and selectivity. For example, a smart home air quality monitor might use a metal-oxide sensor for broad VOC detection, whereas a medical breathalyzer could employ a QCM sensor to identify specific disease biomarkers. By understanding these sensor types, developers can tailor solutions to meet precise scent-detection challenges.
Unveiling the Science: How Scents Trigger Memories and Emotions
You may want to see also
Explore related products
Signal Processing: Converts electrical signals into scent data using algorithms
Electrical scent sensors rely on signal processing to transform raw electrical signals into interpretable scent data. When a sensor detects volatile organic compounds (VOCs) in the air, it generates a unique electrical pattern for each compound. These patterns, however, are often noisy and overlapping, making direct interpretation impossible. Signal processing algorithms step in to clean, amplify, and differentiate these signals, ensuring accurate identification of scents. For instance, a Fourier Transform algorithm can decompose complex signals into their constituent frequencies, allowing the system to distinguish between the overlapping profiles of cinnamon and clove.
Consider the process as a culinary analogy: raw ingredients (electrical signals) are transformed into a dish (scent data) through precise techniques (algorithms). Just as a chef uses specific methods to enhance flavors, signal processing employs techniques like filtering, normalization, and pattern recognition. Filtering removes unwanted noise, akin to straining broth, while normalization adjusts signal amplitudes to a common scale, similar to balancing seasoning. Pattern recognition algorithms, such as machine learning models, then classify these refined signals into known scent profiles, much like a sommelier identifying wine notes.
One practical example is the use of Principal Component Analysis (PCA) in scent sensors. PCA reduces the dimensionality of complex signal data, making it easier to identify key features. For a sensor detecting spoiled food, PCA could isolate the dominant VOCs associated with decay, such as sulfur compounds in rotting eggs or aldehydes in spoiled milk. This streamlined data is then fed into a classification algorithm, which matches it to a predefined scent library. The result? A sensor that not only detects spoilage but also identifies the specific type of food involved, enabling targeted action.
Implementing signal processing in scent sensors requires careful calibration. Algorithms must be trained on diverse datasets to account for variations in temperature, humidity, and concentration levels. For instance, a sensor designed for industrial use might need to differentiate between benzene (a solvent) and toluene (a paint thinner) at concentrations as low as 1 part per million (ppm). Regular updates to the algorithm’s reference library are essential, as new VOCs or scent profiles may emerge over time. Additionally, real-time processing capabilities ensure immediate feedback, critical in applications like air quality monitoring or food safety inspections.
The takeaway is clear: signal processing is the backbone of electrical scent sensors, bridging the gap between raw electrical inputs and actionable scent data. By leveraging advanced algorithms, these sensors can achieve remarkable precision, from identifying allergens in the air to detecting hazardous chemicals in industrial settings. As technology evolves, so too will the sophistication of these algorithms, unlocking new possibilities for scent-based applications across industries. Whether for personal use or large-scale deployments, understanding this process empowers users to harness the full potential of electrical scent sensors.
Storm Bowling Ball Scent Longevity: How Long Does It Last?
You may want to see also
Explore related products
Calibration: Adjusts sensor readings to ensure accurate scent identification
Electrical scent sensors, much like any precision instrument, rely on calibration to deliver accurate and reliable results. Without proper calibration, these sensors can produce misleading data, rendering them ineffective in applications ranging from food quality control to medical diagnostics. Calibration is the process of adjusting the sensor’s readings to match known standards, ensuring it correctly identifies and quantifies scents. For instance, a sensor designed to detect volatile organic compounds (VOCs) in air quality monitoring must be calibrated against certified gas mixtures to account for environmental variables like humidity and temperature.
The calibration process typically involves exposing the sensor to a series of known scent concentrations and adjusting its output to align with these reference values. This is often done using a calibration gas or liquid with a precisely measured odorant concentration. For example, a sensor used in the food industry might be calibrated with a solution containing 10 ppm of ethyl butyrate, a compound responsible for fruity aromas. The sensor’s response to this known concentration is then used to create a baseline for future measurements. Calibration frequency depends on the sensor’s application; sensors in harsh environments or those detecting highly volatile compounds may require daily calibration, while others might only need it monthly.
One critical aspect of calibration is understanding the sensor’s drift—the gradual change in its response over time due to factors like material degradation or contamination. For instance, metal-oxide sensors, commonly used in scent detection, can experience drift due to oxidation or poisoning of their sensing layer. To counteract this, calibration routines often include a zero-point adjustment, where the sensor is exposed to a neutral environment (e.g., clean air) to reset its baseline. Advanced systems may also incorporate automatic calibration features, using built-in reference cells or algorithms to continuously adjust readings without manual intervention.
Practical calibration requires careful planning and execution. For example, when calibrating a sensor for detecting spoilage in packaged meat, ensure the calibration gas or liquid mimics the expected odor profile of the target compounds, such as trimethylamine or sulfur compounds. Use a calibration chamber to control exposure time and concentration, typically ranging from 1 to 100 ppm depending on the sensor’s sensitivity. Always document calibration settings, including date, reference values, and environmental conditions, to track the sensor’s performance over time. Neglecting this step can lead to inconsistent results, such as false positives in detecting foodborne pathogens or inaccurate fragrance dosing in consumer products.
In conclusion, calibration is not just a technical step but a cornerstone of electrical scent sensor functionality. It bridges the gap between raw sensor data and actionable insights, ensuring the technology performs as intended in real-world scenarios. Whether in industrial settings, healthcare, or consumer electronics, a well-calibrated sensor is the difference between reliable detection and costly errors. By understanding and implementing proper calibration techniques, users can maximize the accuracy and longevity of their scent-sensing devices.
Unlocking Aromatic Bliss: How to Open Target's Scented Gel Beads
You may want to see also
Explore related products
Applications: Used in air quality, food safety, and medical diagnostics
Electrical scent sensors, leveraging technologies like metal-oxide semiconductors or polymer-based sensors, are revolutionizing air quality monitoring by detecting volatile organic compounds (VOCs) and particulate matter. These sensors can identify pollutants like formaldehyde, benzene, and nitrogen oxides at concentrations as low as parts per billion (ppb), enabling real-time alerts in smart homes, industrial settings, and public spaces. For instance, integrating these sensors into HVAC systems allows for automated ventilation adjustments, reducing indoor air pollution by up to 40%. Their compact size and low power consumption make them ideal for wearable devices, ensuring personal exposure monitoring for vulnerable populations like children and the elderly.
In food safety, electrical scent sensors act as non-invasive tools to detect spoilage, contamination, and adulteration. By analyzing the gas profile of food packaging, these sensors can identify biomarkers of bacterial growth, such as ammonia or sulfur compounds, with 95% accuracy. For example, in the seafood industry, sensors detect trimethylamine (TMA), a key indicator of spoilage, at levels below human perception. This technology is also used in supply chains to verify product freshness, reducing food waste by up to 25%. Portable devices, like the "FoodSniffer," empower consumers to check food quality at home, ensuring safer consumption and informed purchasing decisions.
Medical diagnostics benefit from electrical scent sensors through their ability to detect disease-specific VOCs in breath, sweat, or urine. Conditions like diabetes, cancer, and respiratory infections emit unique chemical signatures, such as acetone or nitric oxide, which sensors can quantify. For instance, breath acetone levels above 0.9 ppm may indicate diabetic ketoacidosis, enabling early intervention. Clinical trials have shown these sensors to diagnose lung cancer with 85% accuracy by identifying alkanes and benzene derivatives in exhaled air. Their non-invasive nature makes them suitable for pediatric and geriatric patients, offering a painless alternative to blood tests.
Comparatively, electrical scent sensors outperform traditional methods in speed, cost, and scalability. Unlike gas chromatography or mass spectrometry, which require specialized labs and hours of analysis, these sensors provide results in seconds at a fraction of the cost. For air quality, they replace manual sampling with continuous monitoring; in food safety, they eliminate the need for lab-based microbial tests; and in medicine, they reduce reliance on invasive procedures. However, challenges like sensor drift and environmental interference necessitate regular calibration and data validation to ensure reliability across applications.
To maximize the potential of electrical scent sensors, stakeholders must address practical considerations. In air quality, sensors should be placed at breathing height (1.5 meters) and away from vents for accurate readings. Food safety applications require sensors compatible with various packaging materials, such as polyethylene or glass. Medical devices must adhere to regulatory standards like ISO 13485 for clinical use, with user-friendly interfaces for non-technical operators. By integrating machine learning algorithms, these sensors can improve pattern recognition over time, enhancing their predictive capabilities and broadening their impact across industries.
Choosing the Perfect Scent for Your Bath Bomb: A Guide
You may want to see also
Frequently asked questions
An electrical scent sensor detects odors by using an array of chemical sensors that react to volatile organic compounds (VOCs) in the air. These sensors measure changes in electrical properties, such as resistance or capacitance, when odor molecules interact with their sensing materials.
Electrical scent sensors commonly use technologies like metal oxide semiconductors (MOS), conductive polymers, quartz crystal microbalances (QCM), and gas chromatography (GC) coupled with electronic noses. Each technology measures different properties of odor molecules to identify scents.
Yes, electrical scent sensors can distinguish between different smells by analyzing patterns of responses from their sensor array. Machine learning algorithms are often used to interpret these patterns and classify odors based on their unique chemical signatures.
Electrical scent sensors are used in various fields, including food quality control, environmental monitoring, medical diagnostics (e.g., detecting diseases through breath analysis), industrial safety (e.g., detecting gas leaks), and consumer electronics (e.g., smart home devices).
